Swift Hitch SH03D - Waterproof Digital Portable Two Wireless Travel Trailer Camera System (Low Battery Alert)

  • $339.00
  • Save $20

Free Shipping to US Mainland for Orders Over $100

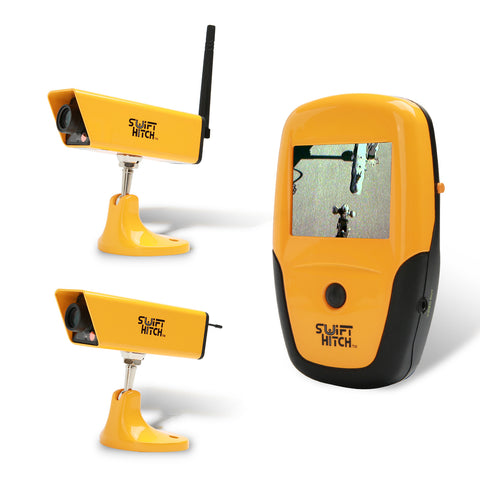

The Portable Digital Wireless 2 Camera Back-up and Monitoring System

The new Swift Hitch SH03D offers the capability to position two portable wireless cameras in separate locations.  Both cameras transmit to a high definition color monitor with a toggle switch that allows the viewing of the images from the two cameras. It is interference FREE camera system. SH03D system is based upon proven Swift Hitch technology that has been in existence since 2006 with thousands of satisfied users.

Key Features:

  • Two portable wireless cameras that each have an internal rechargeable battery which allow for up to 10 hours of usage with a full charge.
  • Full color 2.5” LCD screen with high resolution 960x240, with normal and reverse imaging.
  • Water resistant cameras that come with a weather guards
  • Easily accessible toggle switch on display to view images from two cameras.
  • Extended antenna with a 10 ft cable that attaches to one of the cameras.
  • Magnetic base on both cameras.
  • Infra-red for night vision on both cameras.
  • Both cameras are water resistant.
  • Triangular suction cup mount which allows a camera to be mounted on a non-magnetic surface.
  • Cigarette lighter charging adapter with two connectors to allow charging of two devices at the same time.
  • Able to display two camera's low battery level alert to remind user charging camera in advance.
  • Able to display two camera's signal strength
  • One year limited warranty is included.
  • No installation or wiring is needed.

    Applications:

    • Hitch up a trailer using two views – watch the towing vehicle’s trailer hitch and the trailer being towed.
    • Watch horses in a trailer from two different camera positions.
    • Monitor the trailer load being towed from two locations.
    • Agricultural applications:Watch two bins or silos that are beside each other fill up.
    • View the front and rear of any moving equipment.
    • View two sides of your truck or trailer.
    • Inspections or surveys from two different angles at the same time.

      Product illustration:





      Specification:


      Item Value
      CAMERA Imaging Sensor 1/3" CMOS
      CMOS Total Pixels 628 x 582 (PAL); 510 x 492 (NTSC)
      View Angle 55°
      Minimum Illumination 5Lux/F1.2 & 0Lux (IR ON)
      Transmission Frequency ISM 2.400 GHz - 2.483 GHz
      Transmission Power 100mW/CE
      Modulation Type FM
      Bandwidth 18MHz
      Power Supply +12VDC
      Battery Type Lithium-ion Battery- 3.7 VDC
      Consumption Current 180mA & 230mA (IR ON)
      Charging Current 330mA
      Charge Time Up to 4 hours
      Working Time Up to 8 hours
      Unobstructed Effective Range Up to 300 feet/ 100 yards (100 meters)
      Night Vision Range 15 feet (5m)
      Dimensions (WxDxH)(mm) 28 x 90 x 28
      Weight 5.7oz (156 grams)
      RECEIVER LCD 2.5" TFT
      LCD Resolution 960 x 240
      Receiving Frequency ISM 2.400 GHz - 2.483 GHz
      Demodulation Type FM
      Receiving Sensitivity -80dBm
      Power Supply +12VDC
      Consumption Current 240mA
      Charge Time Up to 2 hours
      Working Time Up to 10 hours
      Dimensions (WxDxH)(mm) 80 x 38 x 130
      Weight 5.5oz (156 grams)
        Operating Temperature -10° C - 50° C/ +14° F - +122° F
        Storage Temperature -30° C - +65° C/ -22° F - +149° F
        Operating Humidity 85%RH

        User Manual Download
