Swift Hitch SH02D - Waterproof Digital Portable Wireless Back-up Camera System (Send Alert to Monitor when Battery Runs Low)

  • $239.00
  • Save $20

Free Shipping to US Mainland for Orders Over $100


Product Description

SH02D is the new camera system from Swift Hitch products family. It uses the digital solution to avoid the interference of either WiFi or Bluetooth. It is also a portable wireless color camera system and can assist anyone who has ever struggled with hitching any style trailer or snowplow. It is a great and convenient tool for trailer owner, truck owner or any type of vehicle owner, as long as they need a quick and easy way to have a “Third Eye” solution. Product has following key features.

Key  Features

  • No INTERFERENCE of WiFi & Bluetooth.
  • 200 feets transmission distance
  • Preprogrammed digital code matching, no pairing process, is very simple to use.
  • Send Alert to Monitor when camera battery runs low to remind recharging before camera goes off.
  • Charge system by 12 volt socket in the vehicle (charge cable is included) and run continuously for up to 10 hours.
  • Full set of accessories: carrying case, suction cup mount, charging cable, video out cable, velcro tape.
  • Truly portable, magnetic mount base
  •  Hi-resolution color display
  • Night vision allows hitching up in total darkness
  • Waterproof

Applications

  • Works great as a backup camera for RVs, fifth wheel campers and enclosed cargo trailers.
  • RV'ers can use it when adjusting the satellite reception for the tv.
  • Construction workers, plumbers and electricians can use the small infrared camera to view into tight dark spaces.
  • When backing your boat into the water, the camera can be placed at the end of your boat so you know when you can launch it.
  • Mount the camera on the hood of your truck to make hooking up your snow plow a breeze.
  • The small, lightweight, wireless camera with lights can be mounted on a pole or stick to give you endless viewing possibilities even in the dark.

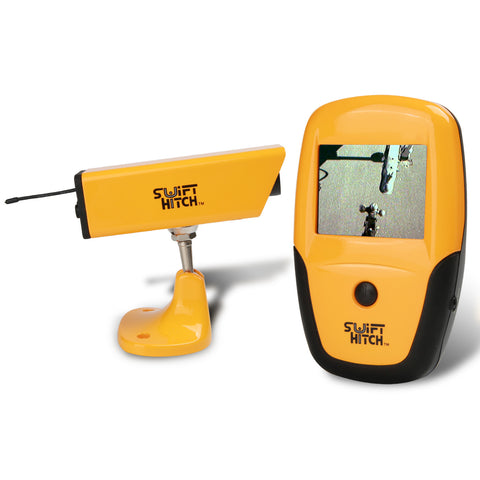

Product illustration



SPECIFICATIONS:

Item Value
CAMERA Imaging Sensor 1/4" CMOS
CMOS Total Pixels 628 x 582 (PAL); 510 x 492 (NTSC)
View Angle 50°
Minimum Illumination 5Lux/F1.2 & 0Lux (IR ON)
Transmission Frequency ISM 2.400 GHz - 2.483 GHz
Transmission Power 100mW/CE
Modulation Type GFSK/FSK
Bandwidth 18MHz Hopping
Power Supply +12VDC
Battery Type Rechargeable Lithium-ion Battery- 3.7 VDC
Consumption Current 180mA & 230mA (IR ON)
Charging Current 330mA
Charge Time Up to 4 hours
Working Time Up to 8 hours
Unobstructed Effective Range Up to 300 feet/ 100 yards (100 meters)
Night Vision Range 15 feet (5m)
Dimensions (WxDxH)(mm) 28 x 90 x 28
Weight 5.7oz (156 grams)
RECEIVER LCD 2.5" TFT
LCD Resolution 960 x 240
Receiving Frequency ISM 2.400 GHz - 2.483 GHz
Demodulation Type GFSK/FSK
Receiving Sensitivity -80dBm
Power Supply

+12VDC

Consumption Current 65mA
Charge Time Up to 2 hours
Working Time Up to 10 hours
Dimensions (WxDxH)(mm) 80 x 38 x 130
Weight 5.5oz (156 grams)
  Operating Temperature

-10° C - 50° C/ +14° F - +122° F

  Storage Temperature

-30° C - +65° C/ -22° F - +149° F

  Operating Humidity 85%RH

User Manual Download:
